details van de producten

Huis > Producten >

LNG-station

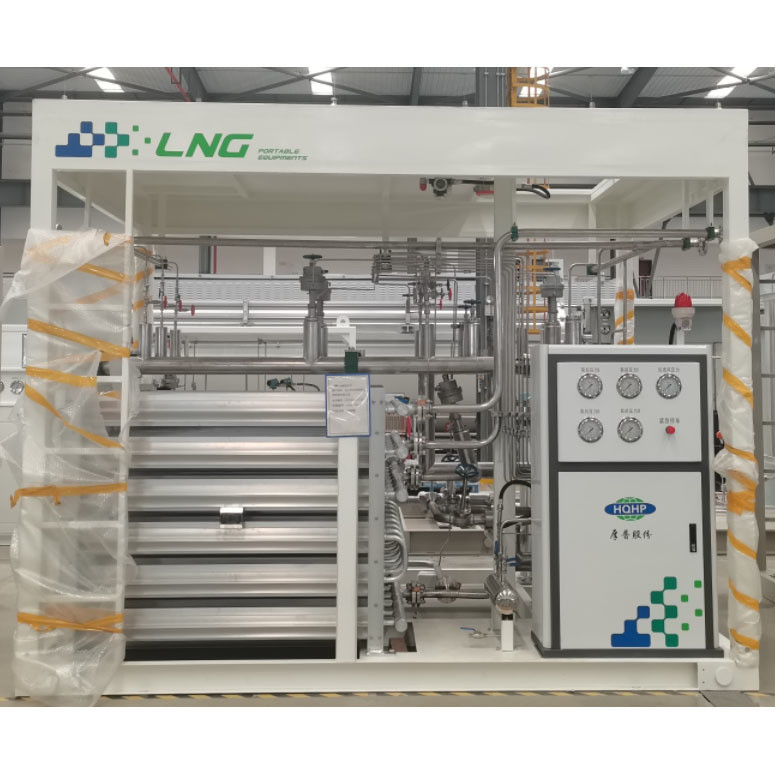

Standard High Quality LNG Single/Double Pump Skid for LNG Station

Alle Categorieën

Andere Producten

Contacteer ons

Mrs. Emma

shixr@hqhp.cn

+8615928541573

Contact nu

Standard High Quality LNG Single/Double Pump Skid for LNG Station

Detailinformatie

Productomschrijving

Detailinformatie

Naam van het product:

LNG-containerstation

OEM-producten:

- Ja, dat klopt.

Toepassingsscenario:

LNG-station

Normen:

GB CE

Leven in dienst:

Lang

ambtenaren:

Klein

Productomschrijving

The product is mainly composed of submersible pump, cryogenic vacuum pump, vaporizer, cryogenic valve, pipeline system, pressure sensor, temperature sensor, gas probe, and emergency stop button.

Product features
Specifications
Ask now

Product features

Comprehensive security protection design, meet GB/CE standards.

LNG Single/Double Pump Filling Pump Skid

● Perfect quality management system, reliable product quality, long service life.
● Integrated skid-mounted structure, high degree of integration, on-site installation is fast and simple.
● The use of double-layer stainless steel high vacuum pipeline, short pre-cooling time, fast filling speed.

● Standard 85L high vacuum pump pool, compatible with international mainstream brand submersible pump.
● Special frequency converter, automatic adjustment of filling pressure, saving energy and reducing carbon emissions.
● Equipped with independent pressurized carburetor and EAG vaporizer, high gasification efficiency.

● Configure special instrument panel installation pressure, liquid level, temperature, etc.
● With a separate in-line saturation skid, it can meet the needs of different models.
● Standardized assembly line production mode, the annual output > 300 sets.

Specifications

Serial number	Project	Parameters/specifications
1	Total power	≤ 22 (44) kilowatts
2	Design displacement	≥ 20 (40) m3/h
3	Power supply	3Phase/400V/50HZ
4	Equipment weight	≤ 2500 (3000) kg
5	Working pressure/design pressure	1.6/1.92 MPa
6	Operating temperature/design temperature	-162/-196°C
7	Explosion-proof markings	Ex d e ib mb II.B T4 Gb
8	Device size	3600×2438 ×2600 mm

Application Scenarios

The product is used for stationary LNG filling station, LNG daily filling capacity of 50/100m³/d, can achieve unattended.

mission

Efficient use of energy to improve the human environment
